WA
12/15 |
|
|
|
 |

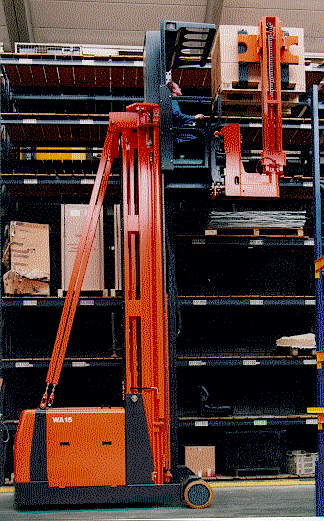

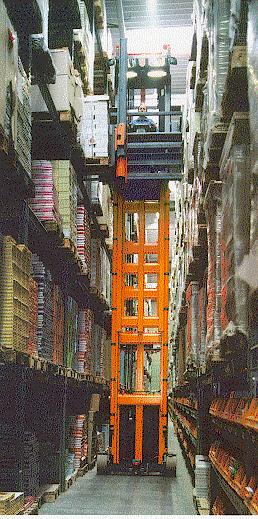

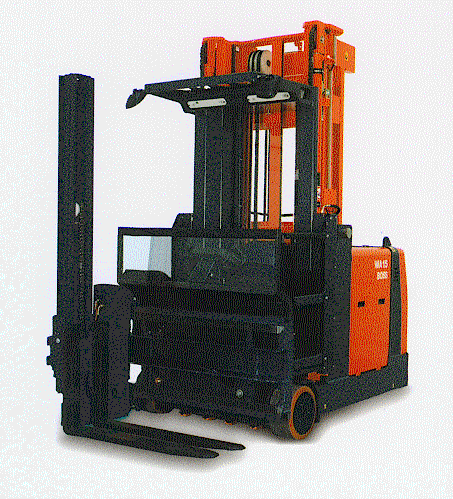

Ergonomic Operation Stacking full pallet loads and order-picking single carton orders are daily chores in many warehouses. The STEINBOCK BOSS Man-Up Depotlift Models WA 10, WA 12, and WA 15 are the best partners for these tasks. Loads up to 3300 lbs are as easily handled as single picked cartons. With lifting heights up to 45 feet, these trucks can make the best use of any storage space structure. The model WA can get as much as 100% more pallet storage over standard fork lifts utilizing the same area. The use of Very Narrow Aisles and minimal Intersecting Aisles maximize the available storage space. A captive narrow aisle system requires reliability and performance. The model WA excels on all fronts utilizing diagonal drive (IE forward / backward while elevating or lowering at travel speeds) and incorporating the latest technology available for safety & maintenance. All supplied from an ISO 9001 certified manufacturer. |
|
 |

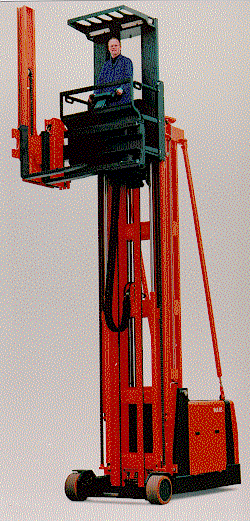

Economics Every detail was carefully considered in making the operators compartment a comfortable work space. The cabin, with its ideally placed controls, unobstructed view to all sides of the truck and adjustable floating seat, assures long productive hours without operator fatigue. ...and leading edge components The electronic steering works feather light, maintenance free and is an energy miser. The latest in AC technology electronic/hydraulic control - NO proportional valves, infinite AC motor control sends only the volume of fluid and pressure required to perform all the hydraulic tasks. Coupled with software programming features such as end-dampening, automatic slow down on mast insertion / separation assure smooth controlled hydraulic movements. The integrated Can Bus computer system controls the AC Drive, Lift and Steer motors providing the ultimate in battery cycle efficiency, while maintaining status (error detection with memory) and control (user programmable options) over the operator functions (such as travel speeds, acceleration, braking, hydraulic speeds etc.) |
|
 |
Problem solving through
experience Flexible modular components offer a wide variety of possibilities in adapting to specific warehousing conditions. Capacity range and lift heights assure that STEINBOCK BOSS has the right truck to fit your application. Supported options include engineered freezer conditioning, enclosed operator cabs, rail guidance, wire guidance, telescopic forks, barcode scanner/terminal integration and warehouse communication, full driverless automation. Our system engineers are problem solvers, they are available for advise on a wide variety of material handling topics, as well as recommending the correct vehicle for the specific warehouse layout. Their knowledge reflects years of company wide material handling experience with numerous applications. Why not ask for their opinion - its free. |
|
 |
Remote diagnostics &
automation Warehouse safety is important to us, we offer optional automatic end of aisle slow down or stops, pedestrian detection in front/rear of the vehicle as well as below the raised cab, which can slow or stop the vehicle in motion completely. Connection to a warehouse computer via PMH link software would allow the facility to update inventories, direct material flow, and control emerging traffic patterns. Additional capabilities include driverless control of the vehicle all from a PC based system. Professional Materials Handling Co., Inc |
|
